X100-FTA - Food and Texture Testing

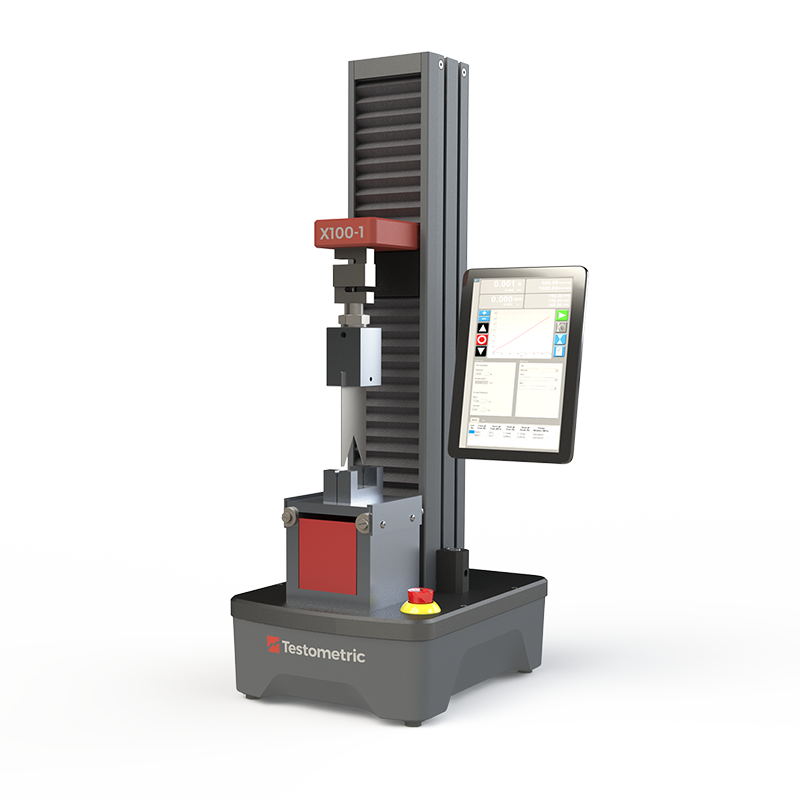

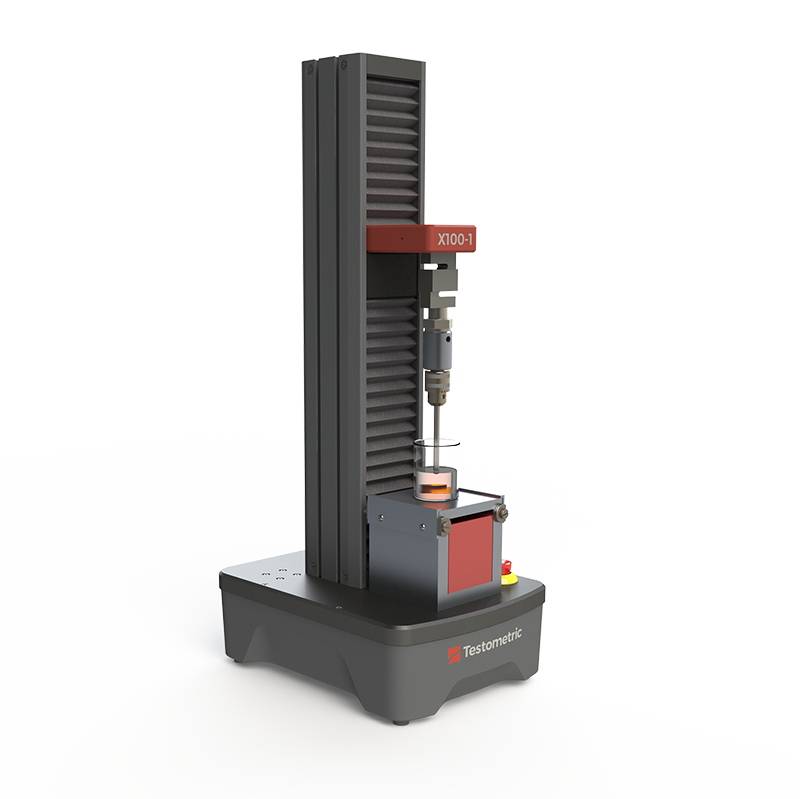

Dedicated Texture Analyser based on the X100-1 Universal Testing Machine, complete with a modular base to accommodate interchangeable fixtures for common food/texture testing applications (e.g. Warner-Bratzler Shear, Magnus Taylor Puncture, Kramer Shear, Back/Forward extrusion tests etc.). Featuring full computer control and precision AC servo drive system.

Add to Quote
Machine Software

All machines are supplied with our comprehensive WinTest-Analysis EC software package, allowing full PC control and the ability to create and store complex test routines.

Made to Measure

  • Fully digital testing system with high precision control and accuracy, includes automated computer control of test methods giving simplicity of operation.
  • High resolution load cells with accuracies better than +/-0.5% down to 1/1000th of the load cell capacity.
  • Automatic recognition of load cells and extensometers, with on-device storage of calibration parameters.
  • Software calibration check facility for instant verification of machine accuracy.
  • 800% overload capability of load cells without damage.
  • High efficiency pre-loaded self cleaning ballscrews for fast, quiet testing. Fitted with sealed for life lubricated end bearings.
  • Crosshead guidance system providing precise alignment and smooth running.
  • Precision crosshead control via digital AC servo drive and brushless servo motor giving maintenance free operation and 20,000 pulses/rev positional control.
  • High speed data collection systems for up to 4 synchronous channels.
  • Expansion channel for additional devices such as extensometers, micrometers, calipers, balances etc.
  • High stiffness loading frames with solid specialised steel crossheads and rigid extruded support columns with T-slots for accessory mounting.
  • Overload, overtravel and impact protection.
  • Telescopic covers giving additional protection for ballscrews against dust and testing debris.
  • Small footprint design, giving economy of bench space.
  • Included ‘WinFood’ software module provides comprehensive data analysis for food/texture testing applications with automated calculation of common properties such as firmness, chewiness, toughness, resilience etc.

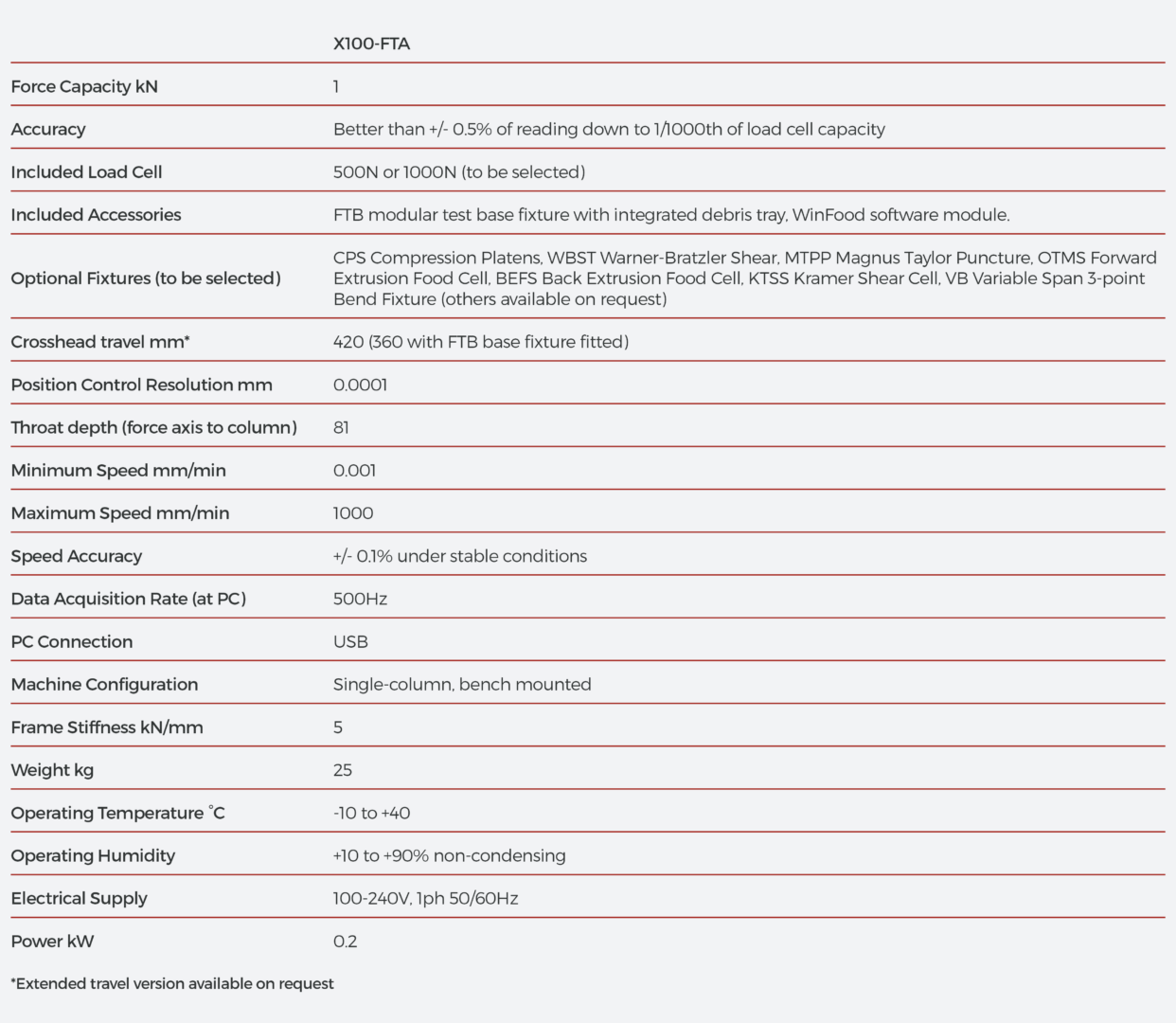

Product Datasheet

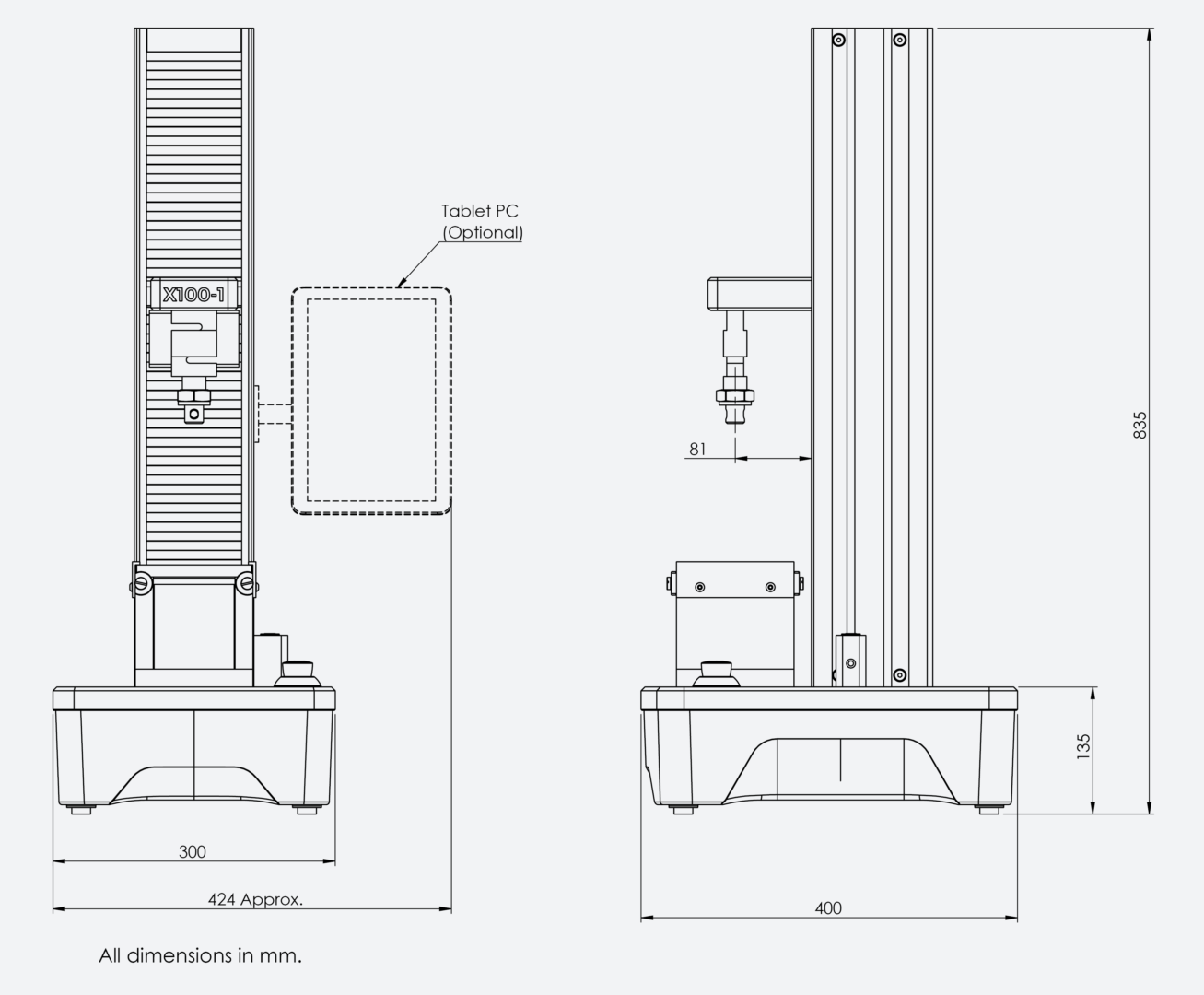

Product Dimensions

Product Schematic
