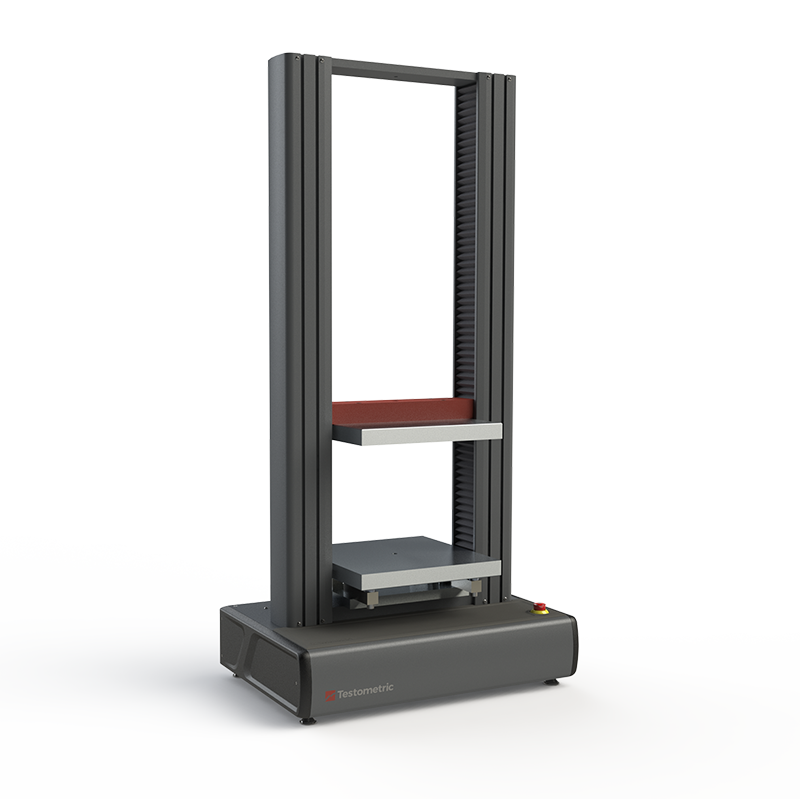

X350 BC - Box Compression

Compact, bench-mounted Box Compression Testing Machine with full computer control and precision AC servo drive system. Lower platen mounted on 4 balanced load cell for improved accuracy and tolerance of uneven loading.

Add to Quote
SKU: X350 BC Categories: , , ,
Machine Software

All machines are supplied with our comprehensive WinTest-Analysis EC software package, allowing full PC control and the ability to create and store complex test routines.

Made to Measure

  • Fully digital testing system with high precision control and accuracy, includes automated computer control of test methods giving simplicity of operation.
  • High resolution load cells with accuracies better than +/-0.5% down to 1/1000th of the load cell capacity.
  • Automatic recognition of load cells and extensometers, with on-device storage of calibration parameters.
  • Software calibration check facility for instant verification of machine accuracy.
  • 800% overload capability of load cells without damage.
  • High efficiency pre-loaded self cleaning ballscrews for fast, quiet testing. Fitted with sealed for life lubricated end bearings.
  • Crosshead guidance system providing precise alignment and smooth running.
  • Precision crosshead control via digital AC servo drive and brushless servo motor giving maintenance free operation and 23-Bit positional control.
  • High speed data collection systems for up to 4 synchronous channels.
  • 6 I/O channels for additional devices such as extensometers, micrometers, calipers, balances etc.
  • High stiffness loading frames with rigid extruded support columns with T-slots for accessory mounting.
  • Overload, overtravel and impact protection.
  • Telescopic covers giving additional protection for ballscrews against dust and testing debris.
  • Small footprint design, giving economy of bench and floor space.
  • Platens feature central holes for mounting additional grips and fixtures, allowing other types of tests on corrugated board (e.g. tensile, puncture, ECT, FCT, RCT, PAT).

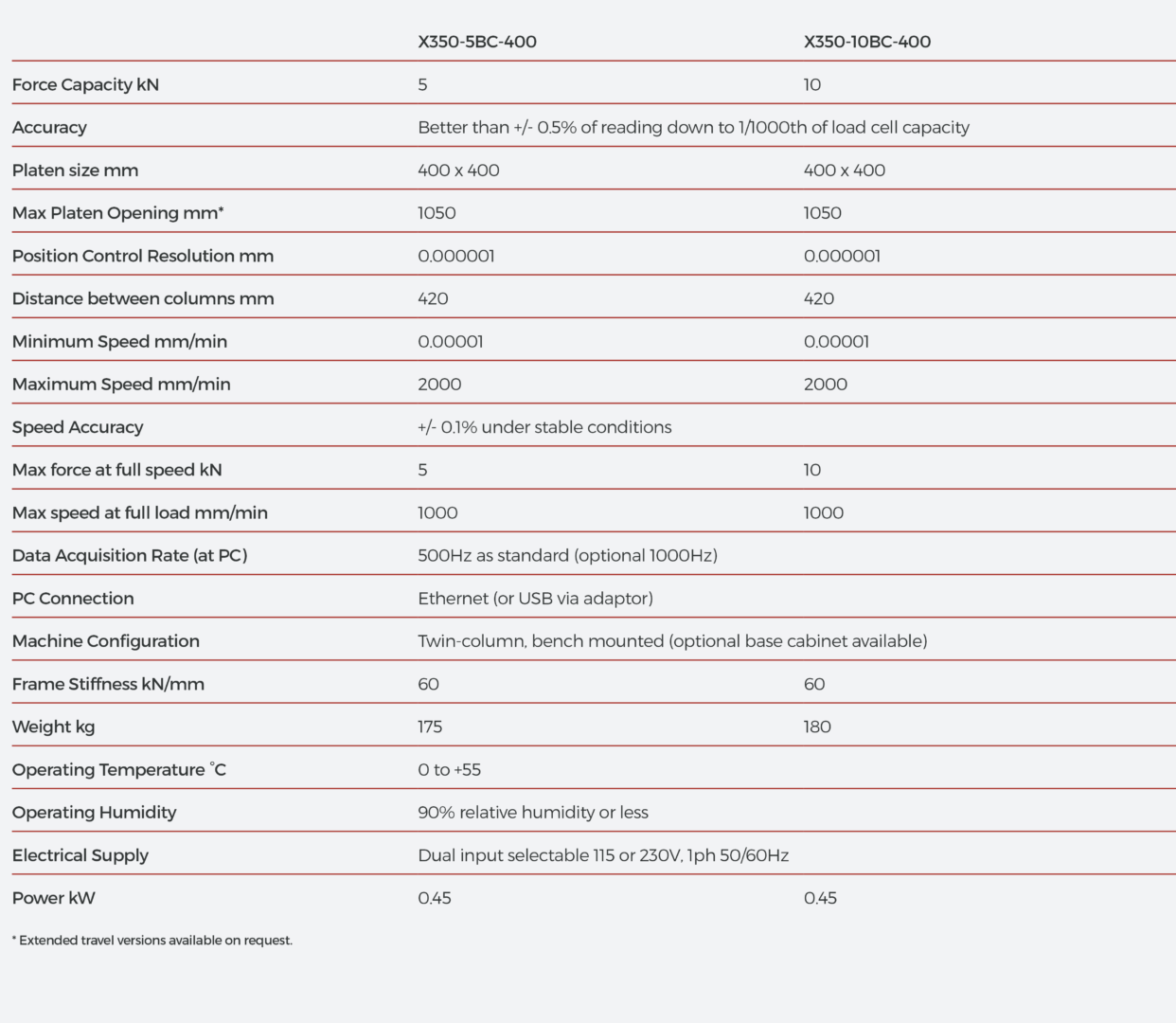

Product Datasheet

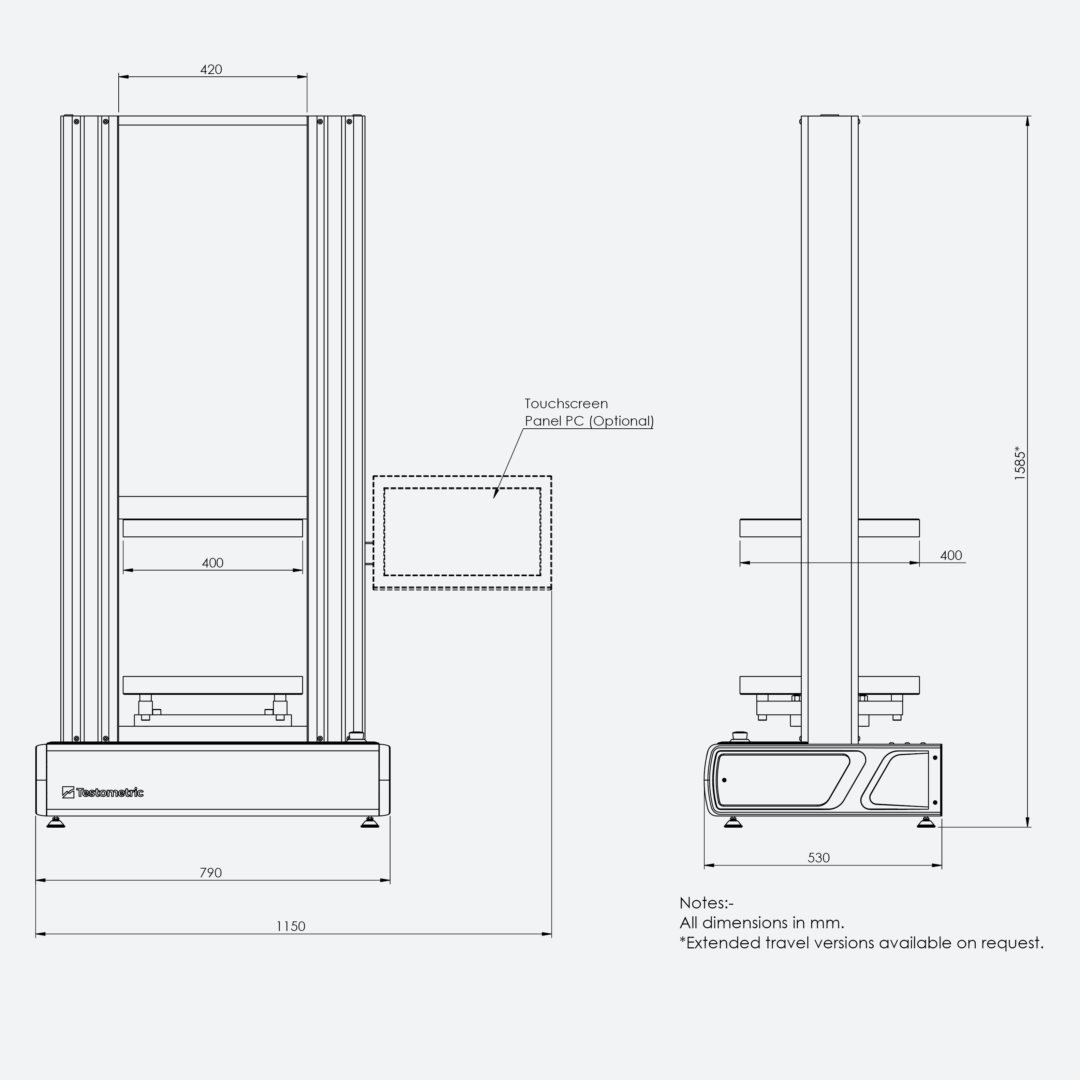

Product Dimensions

Product Schematic
