Spring Testing

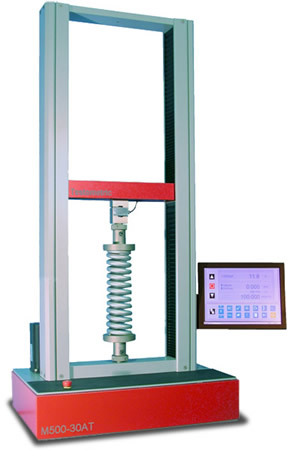

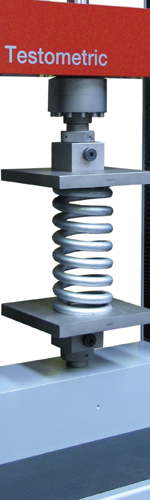

The Testometric X-Series models have internal capacity to store controlled test methods for several thousand spring types. These test methods are stored and recalled for use under a simple spring reference. Each method will control the whole test automatically taking the spring to desired positions and producing the calculations and results required.
The large full colour display shows a real time load deflection plot of each test and displays, test results including free length, load at various deflection, deflections at various loads, various spring rates etc. Continually updated statistics also appear on screen giving highest, lowest and average value for each calculation. The system creates an ideal spring tester for either research or production testing. Machines are available from 100N to 500kN.
Take a look at the most common products used by this industry:
-
VB - 3 Point Bend Fixture
Quick View -
VB310 - 3 point bend fixture for timber to EN310, Bearers 15Ø, loading nose 30Ø. Variable span 50 to 500mm
Quick View -
VB12390 - 3-Point Bend Fixture for Concrete 100 to 600mm span for concrete to BS EN 12390-5
Quick View -
PL - 90 to 180 Degree Peel Fixture
Quick View -
X100 - Range
Quick View -
GRCBEND - Adjustable span 4 point bend fixture for testing glass-fibre re-inforced concrete samples.
Quick View -
ADC - Aerospace dumbbell clamps. 30kN to 50kN
Quick View -
TMF - Automatic clip on extensometer 0-300mm range.
Quick View -
BB - Ball-Burst Fixture
Quick View -
BB2 - Ball-burst fixture. Size 2.
Quick View -
BB3 - Ball-burst fixture size 3.
Quick View -
BB4 - Ball-burst fixture size 4.
Quick View
